Chrome Molybdenum Alloy Steel Investment Casting Product

Short Description:

Casting Metals: Chrome Molybdenum Cast Alloy Steel

Casting Manufacturing: Investment Casting (Lost Wax Casting Process)

Application: Machinery Spare Part

Heat Treatment: Normalizing and QT (Quenching + Tempering)

Weight: 9.60 kg

Surface Treatment: Customized


OEM custom Chrome Molybdenum alloy steel investment casting from China foundry with CNC machining services. Heat treatment as well as surface treatment are also available.

Product Detail

Product Tags

China OEM custom Chrome Molybdenumalloy steel  investment casting products with CNC machining services.

Carbon steel, low alloy steel, high alloy steel and tool steel castings are used in several industrial applications. With their numerous grades, steel and their alloys can be heat-treated to improve its yield and tensile strength and, adjust hardness or ductility to the engineer's application needs or desired mechanical properties.

Chemical Composition of Some of Chrome Molybdenum Cast Steel
Steel Grade C (%) Si (%) Mn (%) Cr (%) Mo (%) P、S (%)
ZG20CrMo 0.17-0.25 0.20-0.45 0.50-0.80 0.50-0.80 0.40-0.60 ≤0.035
ZG35CrMo 0.30-0.37 0.30-0.50 0.50-0.80 0.80-1.20 0.20-0.30 ≤0.035
ZG40CrMo 0.35-0.45 0.17-0.45 0.50-0.80 0.80-1.10 0.20-0.30 ≤0.04
ZG20Cr5Mo 0.15-0.25 ≤0.50 ≤0.60 4.00-6.00 0.50-0.65 ≤0.04
ZG17CrMo 0.15-0.20 0.30-0.60 0.50-0.80 1.20-1.50 0.45-0.55 ≤0.04

Using the investment casting process, RMC casting foundry is capable of meeting material specifications according to ASTM, SAE, AISI, ACI, DIN, EN, ISO, and GB standards. We have more than 100 different ferrous and non-ferrous alloys with which we cast parts using complex design criteria. Our dimensionally and geometrically complex investment castings are produced to net shape, minimizing the need for secondary machining.

Chromium-molybdenum cast steel is widely used in industrial fields with relatively high mechanical properties. The addition of molybdenum to chromium steel can increase the strength of steel castings without having a significant impact on the impact toughness of cast steel. Moreover, chromium-molybdenum cast steel has very good high temperature performance and creep resistance. After quenching and tempering or normalizing heat treatment, chromium-molybdenum cast steel can obtain excellent mechanical properties.

Molybdenum can improve the hardenability of cast steel and reduce the temper brittleness of cast steel. Chromium-molybdenum cast steel is used for large-section castings and steel castings that require deep hardening.

Investment Casting Technical Data at RMC Foundry
R & D Software: Solidworks, CAD, Procast, Pro-e
Lead Time for Development and Samples: 25 to 35 days
Molten Metal Ferritic Stainless Steel, Martensitic Stainless Steel, Austenitic stainless steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Carbon Steel, Alloy Steel, Tool Steel, Heat Resistant Steel,
Nickle-base Alloy, Aluminium Alloy, Copper-base Alloy, Cobalt-base Alloy
Metal Standard ISO, GB, ASTM, SAE, GOST EN, DIN, JIS, BS
Material for Shell Building Silica Sol (Precipitated Silica )
Water Glass (Sodium Silicate)
Mixtures of Silica Sol and Water Glass
Technical Parameter Piece Weight: 2 gram to 200 kilo gram
Max Dimension: 1,000 mm for Diameter or Length
Min Wall Thickness: 1.5mm
Casting Roughness: Ra 3.2-6.4, Machining Roughness: Ra 1.6
Tolerance of Casting: VDG P690, D1/CT5-7
Tolerance of Machining: ISO 2768-mk/IT6
Inner Core: Ceramic Core, Urea Core, Water Soluble Wax Core
Heat Treatment Normalizing, Tempering, Quenching, Annealing, Solution, Carburization.
Surface Treatment Polishing, Sand / Shot Blasting, Zinc Plating, Nickel Plating, Oxidation Treatment, Phosphating, Powder Painting, Geormet, Anodizing
Dimension Testing CMM, Vernier Caliper, Inside Caliper. Depth Gage, Height Gage, Go/No go Gage, Special Fixtures
Chemical Inspection Chemical Compostion Analysis (20 chemical elements), Cleanliness Inspection, X-ray Radiographic Inspection, Carbon-Sulfur Analyser
Physical Inspection Dynamic Balancing, Static Blancing, Mechanical Properties (Hardness, Yield Strength, Tensile Strength), Elongation
Production Capacity More than 250 tons per month, more than 3,000 tons annually.

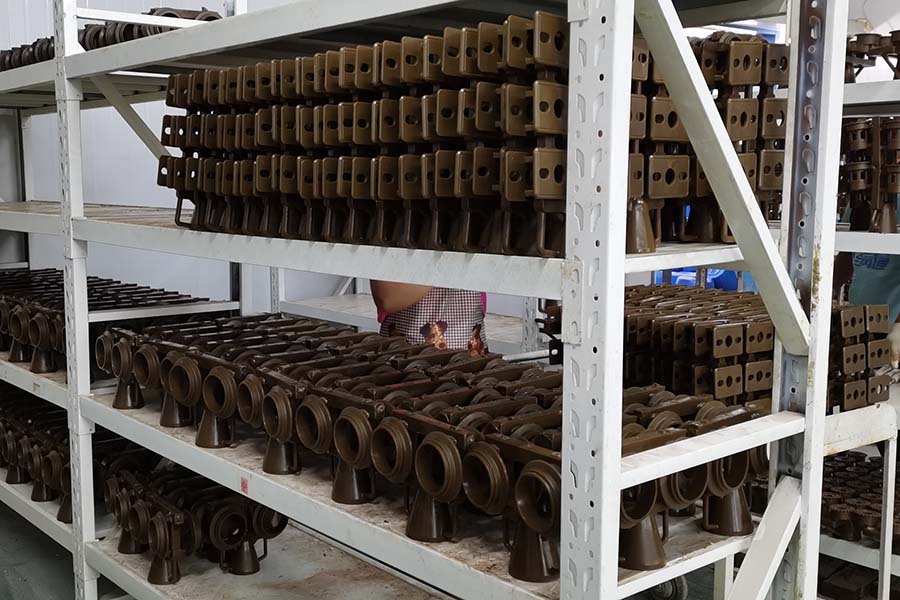

lost wax casting alloy steel manufacturer
