Lost Foam Casting Aluminium Company

Short Description:

Casting Material: Aluminium Alloy

Casting Process: Lost Foam Casting ( Full Mold Casting )

Application: Transmision Housing

Surface: Sand Blasting

Weight: 11.80 kg


Aluminium alloy castings made by lost foam casting ( full mold casting) from China casting factory. As one of the most-advanced foundries with lost foam casting, sand casting and investment casting processes, we are here to produce the high level of precision and dimensional accuracy with consistently high quality and efficiency.


Our engineering experts are happy to help you develop the optimum solutions for your company with Chinese price level but reliable quality.

Product Detail

Product Tags

Lost foam casting aluminium parts are widely used for transmission cover of heavy duty truck. During lost foam casting process, the sand is not bonded and a foam pattern is used to form the shape of the desired metal parts. The foam pattern is "invested" into the sand at the Fill & Compact process station allowing the sand into all voids and supporting the foam patterns external form. The sand is introduced into the flask containing the casting cluster and compacted to ensure all voids and sapes are supported.

Lost Foam Casting, also called EPC (Expandable Pattern Casting) or LFC (Lost Foam Casting), is to put the foamed plastic pattern group coated with refractory coating into the sand box, and fill it with dry sand or self-hardening sand around the pattern. During pouring, the high-temperature molten metal makes the foam pattern pyrolyzed and “disappears” and occupies the exit space of the pattern, and finally the casting method of the casting is obtained.

The castings produced by lost foam casting have high dimensional accuracy and smooth surface with less pollution in the production process. Lost foam casting is a near-net forming process, suitable for the production of more precise castings of various sizes with complex structures and unlimited alloys.

▶ Raw Materials Available for Lost Foam Casting (LFC):
• Aluminium Alloys.
• Carbon Steel: Low carbon, medium carbon and high carbon steel from AISI 1020 to AISI 1060.
• Cast Steel Alloys: ZG20SiMn, ZG30SiMn, ZG30CrMo, ZG35CrMo, ZG35SiMn, ZG35CrMnSi, ZG40Mn, ZG40Cr, ZG42Cr, ZG42CrMo...etc on request.
• Stainless Steel: AISI 304, AISI 304L, AISI 316, AISI 316L and other stainless steel grade.
• Brass & Copper.
• Other Materials and Standards on request

▶ Capabilities of Lost Foam Casting Aluminium Foundry
• Max Size: 1,000 mm × 800 mm × 500 mm
• Weight Range: 0.5 kg - 100 kg
• Annual Capacity: 2,000 tons
• Tolerances: On Request.

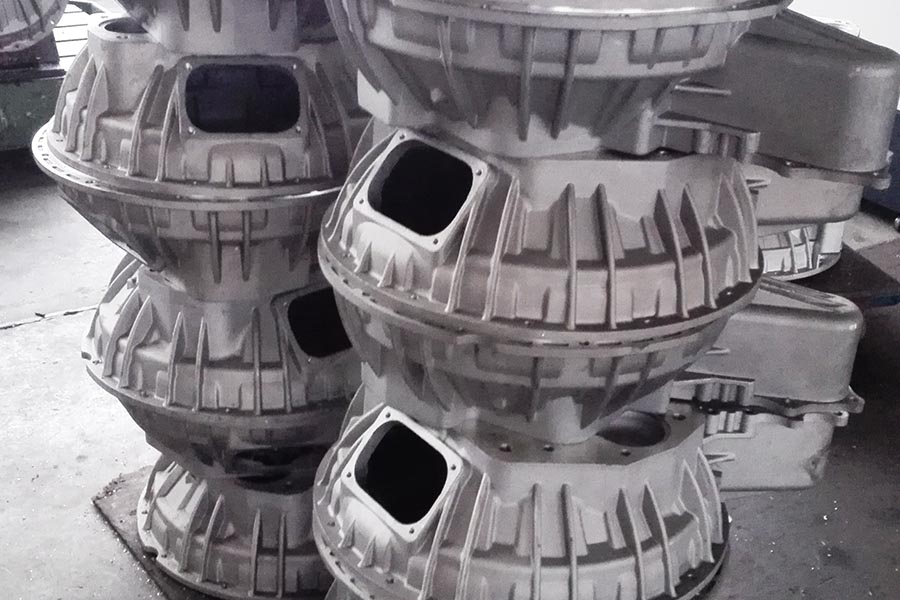

aluminium lost foam castings -1

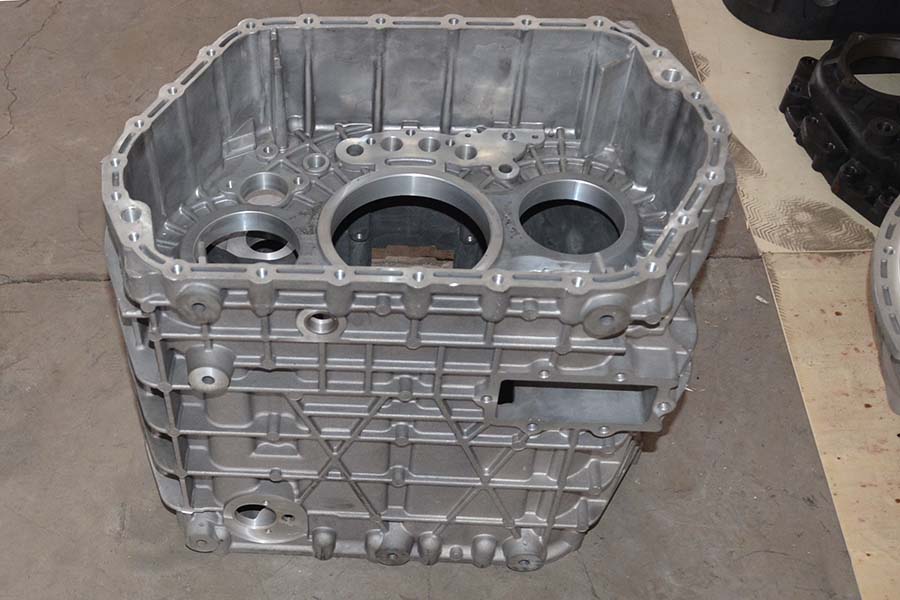

China aluminium alloy lost foam casting gear housing
